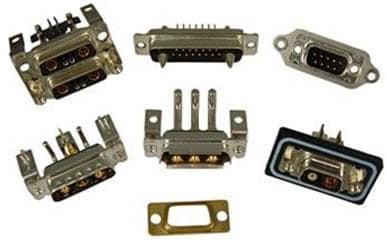

Amphenol Commercial TW Hybrid D-Sub Connectors
Amphenol Commercial TW Hybrid D-Sub Connectors come in various contact arrangements such as signal, power, shielded, high voltage, and fiber optics. These connectors feature mating interfaces according to MIL C24308, less than 5mΩ contact resistance, and endure temperatures up to 260°C. The TW Hybrid D-Sub connectors are supplied with screw-machined contacts fixed in the insulators. These connectors are suitable for use in commercial, medical, industrial, telecom, and any applications requiring optimization of space.
Features
- Standard D shape connectors
- Mating interface according to MIL C24308
- Current rating of 7.5A for signal and maximum 40A for power
- Endures temperatures up to 260°C
- Contact resistance less than 5mΩ
- Up to 18 configurations of signal, power, and coax contacts
- Machined signal contacts are fixed in the insulator
- Metal shells for EMI
- Grounding dimples for plug
- UL #232356 Certified
- Inserts are made of flame-retardant thermoplastic
- Hybrids are available in signal/power/coaxial
- Variants with a comprehensive range of terminations
- Both socket and plug are available for each termination variant
- Ensures proper mating orientation
- Suitable for applications requiring high reliability
- Suitable for high-end applications
- Meets industry standards
- Supports various customer needs
Applications
- Commercial
- Medical
- Industrial
- Telecom
- Applications requiring optimization of space
Overview

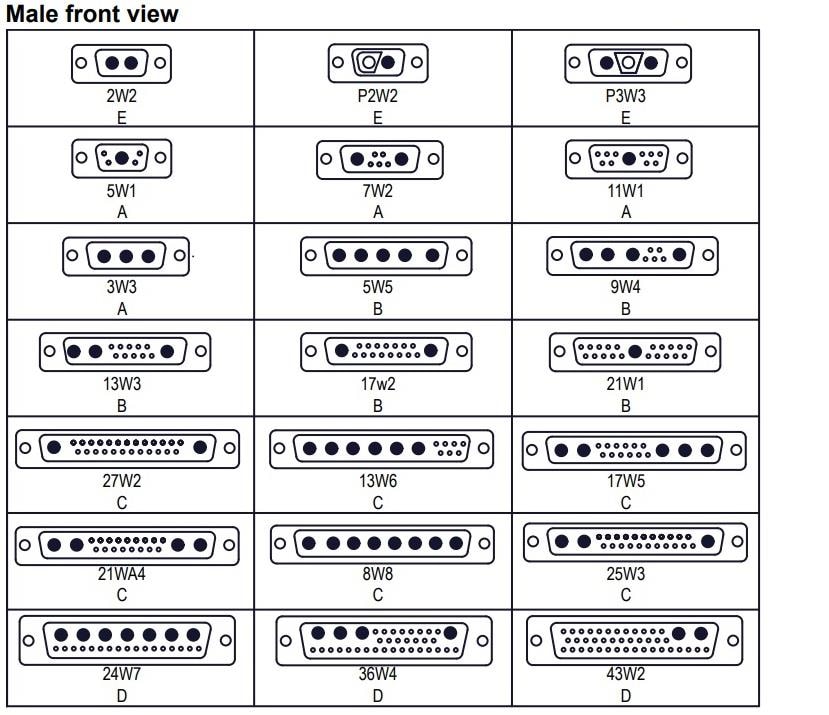

Housing Arrangement
View Results ( 579 ) Page
| 零件編號 | 規格書 | 說明 | 聯繫人性別 | 觸點材料 | 觸點电镀 |
|---|---|---|---|---|---|
| L17DM537425001 |  |
D-Sub觸點 Inner SolderCup Ferrule ST Socket | Socket (Female) | Phosphor Bronze | Gold |
| L177HRD78S | |
D-Sub高密度連接器 78P Sz D Recpt Hsng Skt Tinned Shell | |||
| L177HDE15SD1CH4R | |
D-Sub高密度連接器 15P Sz E Hi Density Skt Rear Insert 4-40 | |||
| L177HRA26SVFM | |
D-Sub高密度連接器 26P Sz A Recpt Hsng M3 Front Screwlock | |||
| L177RRA15SVFM | |
D-Sub標準連接器 15P Sz A Recpt Hsng Front Screwlock M3 | Socket (Female) | Brass | Gold |
| L177RRC37SVF | |
D-Sub標準連接器 37P Sz C Recpt Hsng Front Screwlock 4-40 | Socket (Female) | Gold | |
| L177HRCG62S | |
D-Sub高密度連接器 62P Sz C Recpt Hsng Rear Insert M3 | |||
| L177HRCH62S | |
D-Sub高密度連接器 62P Sz C Recpt Hsng Rear Insert 4-40 | |||
| L177HRBH44S | |
D-Sub高密度連接器 44P Sz B Recpt Hsng Rear Insert 4-40 | |||
| L177SDC37S | |
D-Sub標準連接器 D-SUB | Socket (Female) | Brass | Gold |
