Global Specialties PB-50xA Circuit Design Trainer Educational Kits

Global Specialties PB-50xA Circuit Design Trainer Educational Kits enable hands-on lab experience by employing necessary breadboarding techniques which provide a solid foundation in circuit experimentation, analyzing, and troubleshooting. These kits are suitable for all levels of electronics instruction and design. These devices construct basic series and parallel circuits up to the most complicated multi-stage microcomputer circuits incorporated in industrial technology.

Features

  • Ideal for analog, digital, and microprocessor circuits
  • Includes built-in digital function generator with continuously variable waveforms
  • Triple output power supply for a variety of DC voltage levels
  • Two digital pulsers for logic test circuits
  • High and low buffered logic indicators
  • Logic probe (PB-505A only)
  • AC output (PB-505A only)
  • 2x BCD-to-LED display circuits (PB-505A only)
  • 8-channel logic monitor
  • Audio experimentation speaker
  • Removable breadboard plate allows the flexibility of building circuits away from the lab
  • Analog and digital optional courseware available
  • Input power source, AC line switchable between:
    • 110VAC to 120VAC at 60Hz
    • 210VAC to 230VAC at 50Hz
  • 3-year warranty

Applications

  • Circuits:
    • Opto-device
    • Oscillator
    • Function generator
    • Logic
    • Medium-scale integration
  • Clocks
  • Multivibrators
  • Timers
  • Gates
  • Counters
  • Flip-flops
  • Analog-to-digital converters
  • Digital-to-analog converters
  • Phase lock loops
  • Operational amplifier

Datasheets

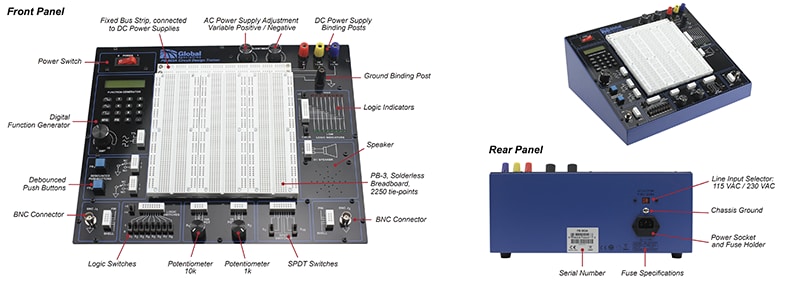

PB-503A Panel Views

Global Specialties PB-50xA Circuit Design Trainer Educational Kits

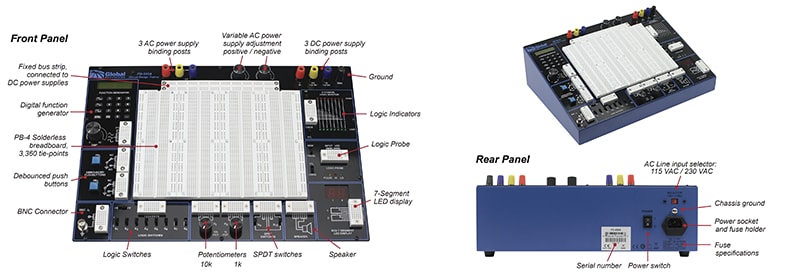

PB-505A Panel Views

Global Specialties PB-50xA Circuit Design Trainer Educational Kits
View Results ( 9 ) Page
零件編號 規格書 說明
PB-503A PB-503A 規格書 PCB和電路試驗板 Desktop Circuit Design Trainer
GSC-2302A GSC-2302A 規格書 元件組件 Electronics Fundamentals Instructor's Guide
GSC-2312A GSC-2312A 規格書 元件組件 Electronics Fundamentals Student Lab Manual, Answer Key
PB-505A PB-505A 規格書 元件組件 Deluxe Circuit Design Trainer
GSC-2301A GSC-2301A 規格書 元件組件 Electronics Fundamentals Student Text
PB-503ALAB PB-503ALAB 規格書 PCB和電路試驗板 PB-503A Plus Courseware and Kit
PB-505ALAB PB-505ALAB 規格書 元件組件 PB-505A Plus Courseware
PB-507ALAB PB-507ALAB 規格書 元件組件 PB-507A Plus Courseware and Kit
GSC-2311A GSC-2311A 規格書 PCB和電路試驗板 Electronics Fundamentals Student Lab Manual
