KEMET 低功率聚丙烯電容器
KEMET Electronics低功率聚丙烯電容器具有100pF至22µF電容範圍、900VAC最大額定電壓，以及最高20%的容差。KEMET低功率聚丙烯電容器非常適合用於電視機中的偏轉電路，以及高電壓和電流設計。這些電容器包括以下系列：R71、R73、R74、R75、R76、A70、PHE450、PFR、A72和F461-F464。
特點
- 100pF to 22µF capacitance range
- 900VAC maximum voltage rating
- 0% to 20% tolerance

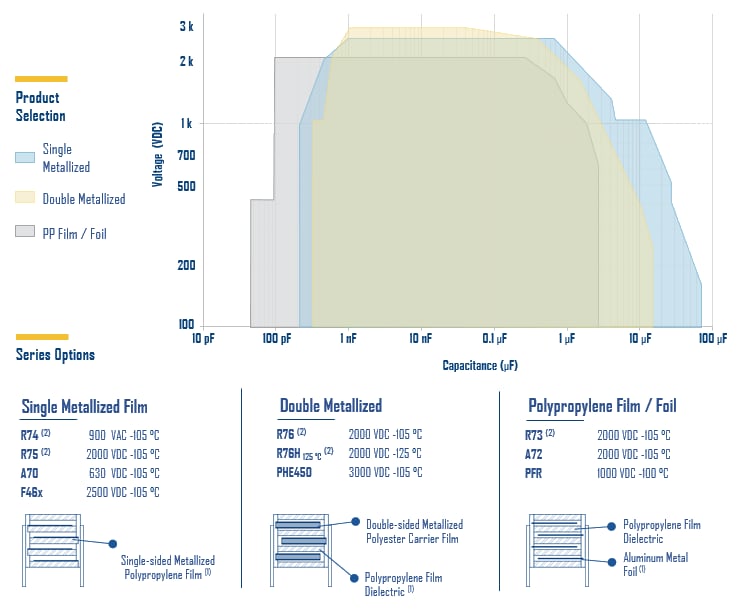

比較圖表

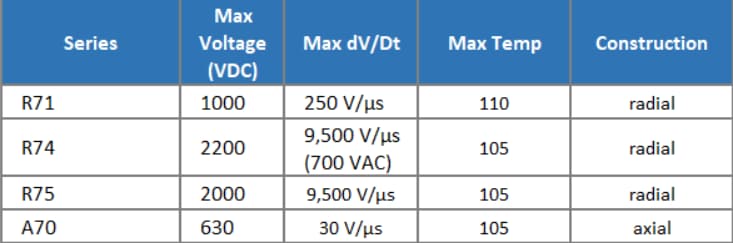

單金屬化結構

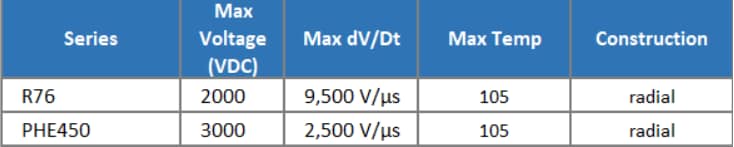

雙金屬化結構

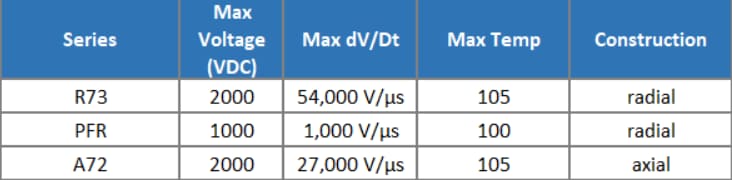

薄膜/箔結構

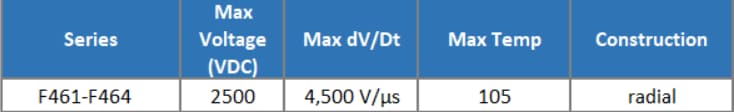

無鹵解決方案
