ROHM Semiconductor CSL901xW表面黏著晶片LED
ROHM Semiconductor CSL901xW表面黏著晶片LED為低電流發射型LED。裝置採用AlGaInP，順向電壓為1.8V，亮度1級。ROHM CSL901xW使用乳白色擴散樹脂，封裝尺寸為1.6 mm x 8 mm (t=0.55)。
特點
- IF：20 mA（VF時）
- 順向電壓（典型值）：1.8V
- 亮度等級：1
- 作業溫度範圍：-40°C至85°C
- 存放溫度：-40°C至100°C
- 封裝尺寸：1.6mm x 8mm (t=0.55)
應用
- 家電
- 工業設備

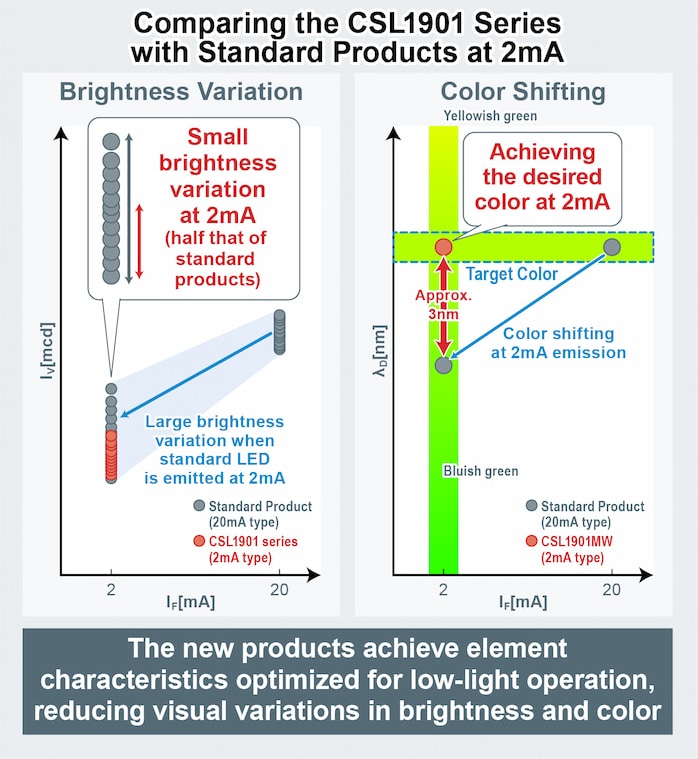

比較表

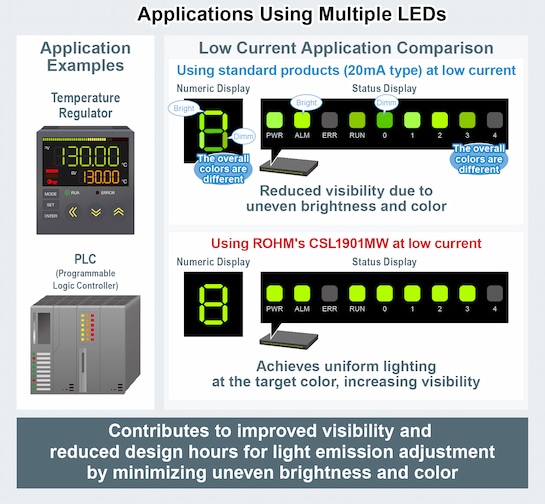

LED應用
View Results ( 5 ) Page
| 零件編號 | 規格書 | 說明 | 波長/色溫 |
|---|---|---|---|
| CSL1901UW1 |  |
單色LED Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 620 nm |
| CSL1901VW1 | |
單色LED Red Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 630 nm |
| CSL1901YW1 | |
單色LED Yellow Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 590 nm |
| CSL1901DW1 | |
單色LED Orange Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 605 nm |
| CSL1901MW1 | |
單色LED Yellow Green Surface Mount Chip LEDs featuring AlGaInP packed with milky white diffused resin. | 570 nm |
