Vishay TSOP39x & TSOP59x Native Top-View IR Receivers
Vishay TSOP39x and TSOP59x Native Top-View IR Receivers feature a two-lens design and offer typical irradiance down to 0.08mW/m2 in four AGC versions. These miniature IR receivers are offered in a through-hole package to save PCB space. Vishay TSOP39x and TSOP59x Native Top-View IR Receivers simplify designs with a photodetector, preamplifier circuit, and IR filter in a single 4-pin epoxy package.
The TSOP39x IR receivers are optimized to suppress spurious pulses from CFLs while the TSOP59x receivers are equipped to suppress Wi-Fi pulses as well. These IR receivers operate at a supply voltage range from 2.5V to 5.5V and very low supply current down to 0.35mA.
Features
- Native top-view IR receivers
- Offered in through-hole packages
- High sensitivity with typical irradiance down to 0.08mW/m2
- 2.5V to 5.5V supply voltage range
- Very low supply current down to 0.35mA (typical)
- Improved immunity against ambient light
- Insensitive to supply voltage variations and ripple noise
- Offered in four Automatic Gain Control (AGC) versions for short and long burst codes
- 30kHz to 56kHz carrier frequency range
Applications
- Set-top boxes
- Air conditioners
- High-end audio systems

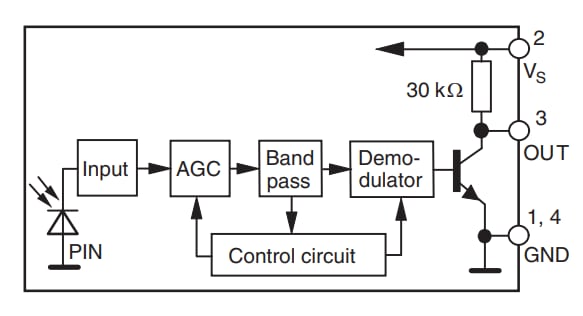

Block Diagram

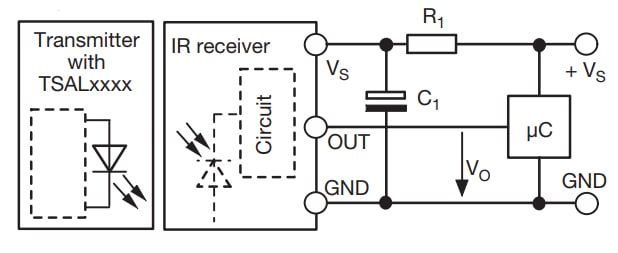

Application Circuit
